Every part in a railway system have to work well. This maintains the system safe and efficient. Railway casting components are very crucial. They give assistance, link things, and conduct signals. Their quality impacts just how steady the railway network is. When you get these components for South Africa, South America, or Russia, you should discover good manufacturers. To be effective, you require to understand the local technological rules. Right here are 5 vital top quality requirements you need to constantly comply with.
1. Material Composition & Mechanical Characteristics: The Foundation of Quality
The efficiency of actors iron relies on its certain chemical make-up and spreading procedure, and need to satisfy the worldwide or local standards of the target audience. A reputable railway casting components manufacturer will certainly offer complete material traceability.
1.1 Structure Specifications: Need to follow requirements such as International Requirements (ISO), European Standards (EN), Russian GOST criteria, or those commonly utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The content of hazardous components like phosphorus and sulfur need to be strictly managed.
1.2 Mechanical Characteristics: Focus on tensile strength, yield stamina, hardness, and elongation. For ductile iron, refer to criteria such as ISO 1083, EN 1563, or GOST 28394. Procurement ought to call for providers to give material certifications and mechanical examination records that comply with the target audience’s demands.

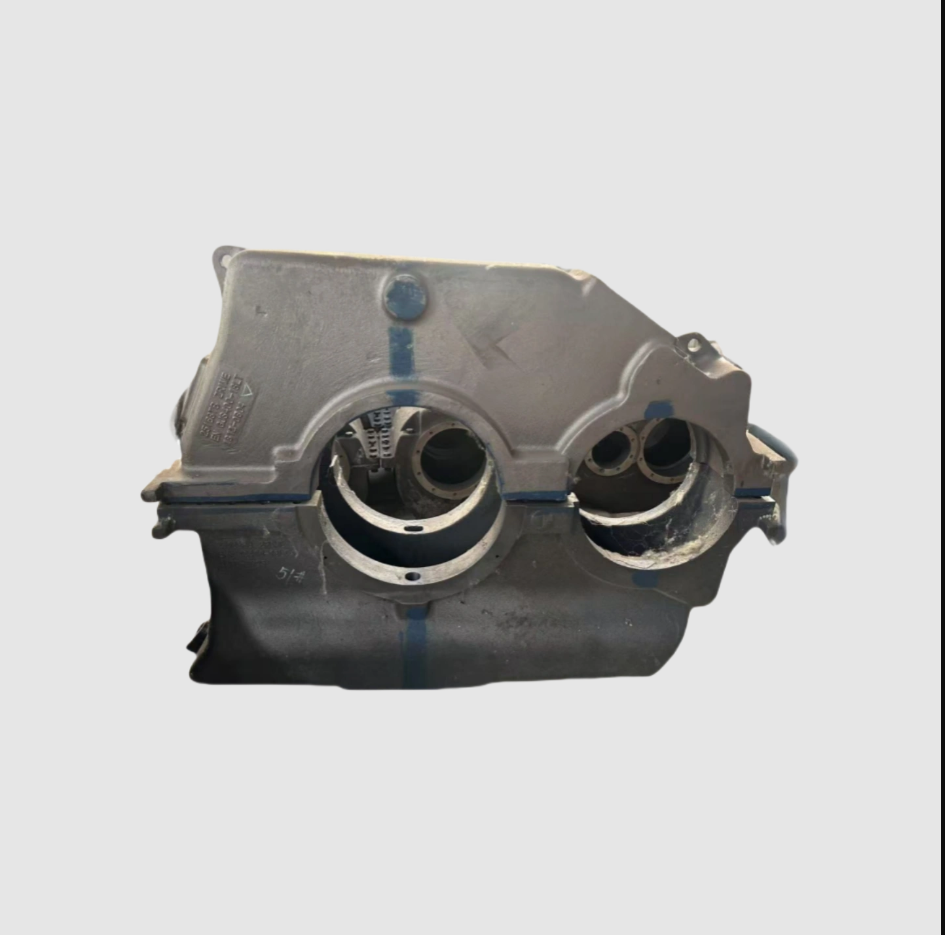

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Resistance Control: Ensuring a “Perfect Fit”
Train tasks worldwide have rigorous requirements for dimensional interchangeability; any type of variance can affect system combination. Precision is a mark of premium railway casting suppliers.
2.1 Essential Dimensions: All user interface measurements and mounting hole settings for all train casting parts have to be 100% inspected.
2.2 Resistance Criteria: Should abide by worldwide identified requirements like ISO 2768, or specific resistance demands explicitly set with the client. For the Russian and CIS markets, unique focus should be paid to abiding by appropriate resistance specifications in GOST 30893.
3. Limitations on Casting Issues: Eliminating Internal Hidden Dangers
The approval criteria for casting issues should be clearly specified in agreements and based upon internationally or regionally recognized requirements. Leading railway casting components maker operations employ rigorous non-destructive screening.
3.1 Surface area Flaws: Requirements like ISO 8062 can be referenced for analyzing spreading surface area quality. Cracks, chilly shuts, and other problems impacting service are not permitted.
3.2 Internal Problems: For vital load-bearing train casting components, non-destructive screening (e.g., ultrasonic, radiographic) must be done according to criteria like ISO 4990, EN 12680, or the GOST R 55724 series, with clear approval degrees for problems.
4. Metallographic Structure & Internal Quality
The tiny framework of the material is the vital basis for evaluating whether its interior quality satisfies the criterion. This is a critical check for any kind of professional train casting parts supplier.
4.1 Ductile Iron: The evaluation of nodularization rate need to comply with criteria such as ISO 945-1 or GOST 3443 to ensure its mechanical buildings fulfill the requirements for usage under complex working problems.
4.2 Graphite Morphology & Matrix Structure: The metallographic inspection report is a crucial file for confirming the security of the production process and should abide by the appropriate international or local standards.

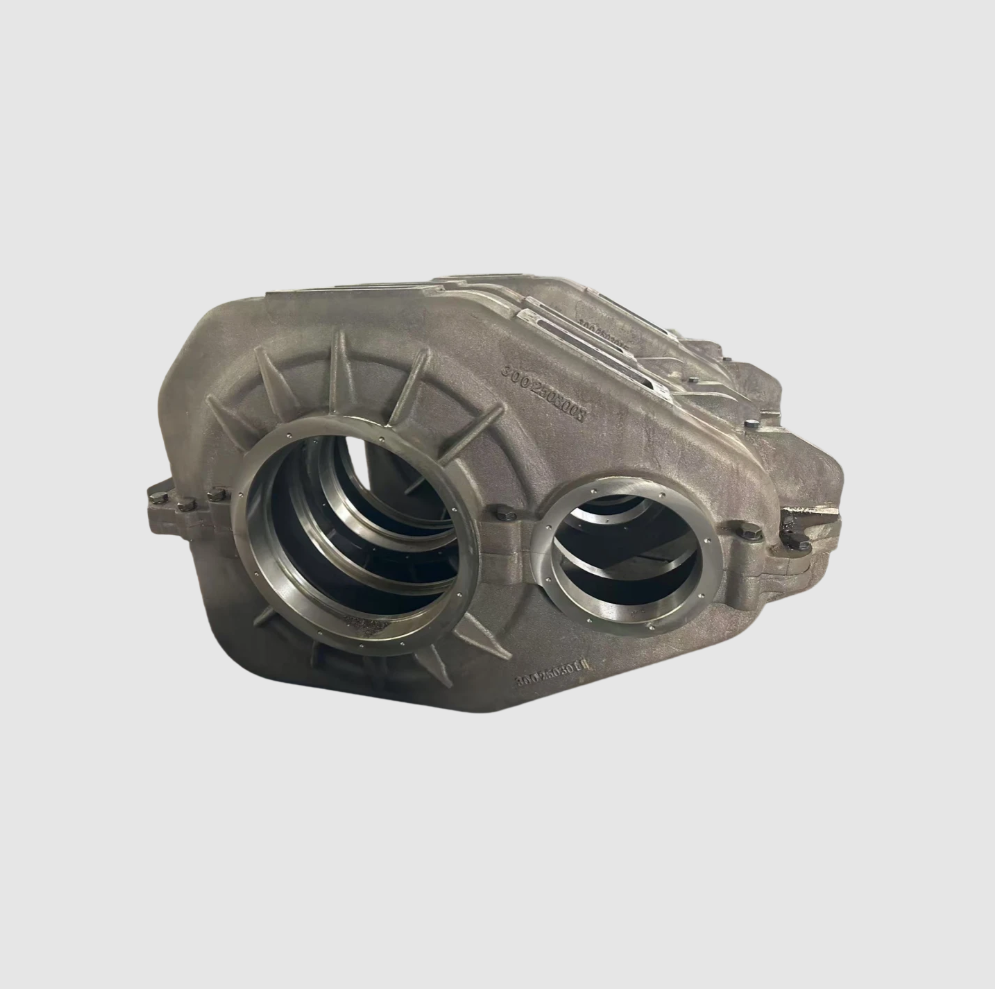

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Quality: Withstanding Harsh Environments
Provided South Africa’s seaside high salinity, South America’s exotic rain forest moisture, and Russia’s severe cool and de-icing salts, anti-corrosion treatment for railway casting components is critical.
5.1 Treatment Procedures: Define the type of anti-corrosion procedure, such as hot-dip galvanizing (ISO 1461), epoxy layer, etc, and define essential indicators like finishing density, adhesion ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Should focus on certain requirements of the target market, such as Russia’s GOST 9.307 anti-corrosion system certification, or South Africa’s SANS (South African National Criterion) criteria. An international railway spreading manufacturers will recognize with these varied needs.
