1. Product Principles and Structural Features of Alumina Ceramics
1.1 Structure, Crystallography, and Stage Stability

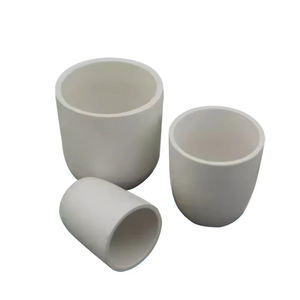

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made largely from light weight aluminum oxide (Al ₂ O FOUR), among one of the most commonly used advanced porcelains as a result of its exceptional combination of thermal, mechanical, and chemical security.
The leading crystalline phase in these crucibles is alpha-alumina (α-Al ₂ O FOUR), which comes from the corundum framework– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent light weight aluminum ions.
This thick atomic packing leads to solid ionic and covalent bonding, providing high melting factor (2072 ° C), exceptional firmness (9 on the Mohs range), and resistance to slip and deformation at elevated temperature levels.
While pure alumina is ideal for a lot of applications, trace dopants such as magnesium oxide (MgO) are frequently included throughout sintering to prevent grain growth and boost microstructural uniformity, consequently enhancing mechanical stamina and thermal shock resistance.
The phase pureness of α-Al two O four is critical; transitional alumina phases (e.g., γ, δ, θ) that form at lower temperature levels are metastable and undergo quantity changes upon conversion to alpha stage, potentially causing fracturing or failing under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The efficiency of an alumina crucible is exceptionally affected by its microstructure, which is established throughout powder handling, forming, and sintering stages.
High-purity alumina powders (generally 99.5% to 99.99% Al Two O SIX) are shaped right into crucible kinds utilizing techniques such as uniaxial pressing, isostatic pressing, or slide spreading, followed by sintering at temperature levels in between 1500 ° C and 1700 ° C.
During sintering, diffusion mechanisms drive bit coalescence, minimizing porosity and increasing density– preferably achieving > 99% academic density to lessen leaks in the structure and chemical infiltration.
Fine-grained microstructures improve mechanical toughness and resistance to thermal stress, while controlled porosity (in some specialized qualities) can improve thermal shock resistance by dissipating stress power.
Surface area finish is likewise critical: a smooth interior surface area reduces nucleation sites for unwanted responses and promotes simple elimination of solidified materials after processing.
Crucible geometry– consisting of wall thickness, curvature, and base design– is optimized to stabilize warm transfer performance, architectural honesty, and resistance to thermal gradients during rapid heating or air conditioning.

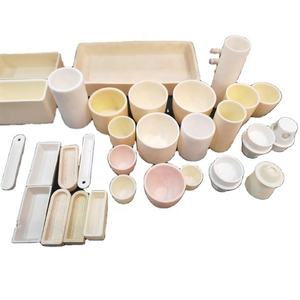

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Behavior
Alumina crucibles are regularly used in environments surpassing 1600 ° C, making them important in high-temperature products study, metal refining, and crystal development procedures.
They exhibit reduced thermal conductivity (~ 30 W/m · K), which, while limiting warm transfer rates, likewise provides a level of thermal insulation and helps keep temperature level gradients required for directional solidification or area melting.
A vital challenge is thermal shock resistance– the capability to withstand unexpected temperature level changes without cracking.
Although alumina has a fairly low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it susceptible to fracture when based on steep thermal slopes, specifically during rapid home heating or quenching.
To minimize this, customers are suggested to adhere to controlled ramping protocols, preheat crucibles gradually, and prevent straight exposure to open up fires or chilly surfaces.
Advanced grades include zirconia (ZrO ₂) toughening or rated make-ups to boost split resistance with devices such as phase improvement toughening or recurring compressive stress and anxiety generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
Among the defining advantages of alumina crucibles is their chemical inertness toward a wide variety of liquified metals, oxides, and salts.
They are highly immune to standard slags, molten glasses, and several metal alloys, consisting of iron, nickel, cobalt, and their oxides, which makes them ideal for use in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
Nevertheless, they are not globally inert: alumina responds with highly acidic fluxes such as phosphoric acid or boron trioxide at high temperatures, and it can be corroded by molten alkalis like salt hydroxide or potassium carbonate.
Especially essential is their communication with aluminum steel and aluminum-rich alloys, which can lower Al ₂ O five through the reaction: 2Al + Al ₂ O FIVE → 3Al ₂ O (suboxide), causing pitting and eventual failing.
In a similar way, titanium, zirconium, and rare-earth metals show high sensitivity with alumina, creating aluminides or complex oxides that compromise crucible honesty and infect the thaw.
For such applications, different crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research Study and Industrial Handling
3.1 Function in Products Synthesis and Crystal Development
Alumina crucibles are central to various high-temperature synthesis courses, including solid-state responses, flux growth, and thaw handling of practical porcelains and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, synthesizing phosphors, or preparing forerunner materials for lithium-ion battery cathodes.
For crystal development techniques such as the Czochralski or Bridgman techniques, alumina crucibles are utilized to include molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high purity makes sure very little contamination of the expanding crystal, while their dimensional security supports reproducible growth conditions over extended periods.
In change growth, where single crystals are grown from a high-temperature solvent, alumina crucibles have to resist dissolution by the change medium– commonly borates or molybdates– calling for mindful selection of crucible quality and processing criteria.
3.2 Use in Analytical Chemistry and Industrial Melting Operations
In analytical research laboratories, alumina crucibles are basic equipment in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where specific mass measurements are made under regulated ambiences and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing settings make them suitable for such accuracy dimensions.
In commercial setups, alumina crucibles are utilized in induction and resistance heaters for melting rare-earth elements, alloying, and casting procedures, especially in precious jewelry, dental, and aerospace component production.
They are also used in the manufacturing of technological ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make sure uniform home heating.
4. Limitations, Taking Care Of Practices, and Future Material Enhancements
4.1 Functional Constraints and Ideal Practices for Durability
In spite of their effectiveness, alumina crucibles have distinct functional limits that must be appreciated to make certain safety and performance.
Thermal shock continues to be the most common root cause of failure; for that reason, progressive heating and cooling cycles are essential, particularly when transitioning with the 400– 600 ° C variety where residual stress and anxieties can accumulate.
Mechanical damage from messing up, thermal cycling, or contact with tough materials can launch microcracks that propagate under anxiety.
Cleansing ought to be done meticulously– avoiding thermal quenching or rough approaches– and utilized crucibles ought to be examined for indicators of spalling, discoloration, or contortion before reuse.
Cross-contamination is an additional worry: crucibles utilized for responsive or hazardous materials need to not be repurposed for high-purity synthesis without thorough cleaning or must be thrown out.
4.2 Arising Trends in Composite and Coated Alumina Equipments
To expand the capabilities of standard alumina crucibles, researchers are developing composite and functionally graded materials.
Instances consist of alumina-zirconia (Al two O FIVE-ZrO TWO) composites that boost durability and thermal shock resistance, or alumina-silicon carbide (Al two O SIX-SiC) variations that enhance thermal conductivity for more uniform home heating.
Surface finishes with rare-earth oxides (e.g., yttria or scandia) are being explored to create a diffusion barrier against reactive metals, thus increasing the range of suitable thaws.
Furthermore, additive production of alumina parts is emerging, enabling custom crucible geometries with inner networks for temperature level tracking or gas circulation, opening up brand-new opportunities in procedure control and reactor style.
In conclusion, alumina crucibles remain a cornerstone of high-temperature modern technology, valued for their dependability, pureness, and adaptability across clinical and industrial domain names.
Their continued advancement with microstructural design and hybrid product design makes sure that they will certainly stay crucial devices in the advancement of materials science, energy modern technologies, and progressed production.
