1. Material Principles and Crystal Chemistry
1.1 Structure and Polymorphic Framework

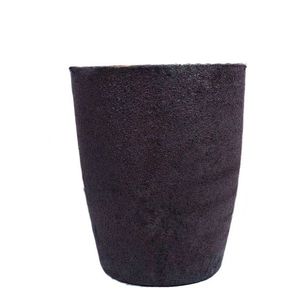

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in piling series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically appropriate.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal growth (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks a native lustrous phase, adding to its stability in oxidizing and harsh environments approximately 1600 ° C.
Its broad bandgap (2.3– 3.3 eV, relying on polytype) additionally enhances it with semiconductor properties, enabling twin usage in architectural and digital applications.
1.2 Sintering Obstacles and Densification Techniques
Pure SiC is very tough to compress as a result of its covalent bonding and low self-diffusion coefficients, necessitating making use of sintering aids or advanced processing techniques.
Reaction-bonded SiC (RB-SiC) is generated by penetrating porous carbon preforms with molten silicon, developing SiC sitting; this technique yields near-net-shape components with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert environment, accomplishing > 99% academic thickness and superior mechanical buildings.
Liquid-phase sintered SiC (LPS-SiC) uses oxide additives such as Al Two O FIVE– Y ₂ O FIVE, forming a transient liquid that boosts diffusion yet might reduce high-temperature stamina as a result of grain-boundary phases.
Warm pressing and stimulate plasma sintering (SPS) offer rapid, pressure-assisted densification with fine microstructures, ideal for high-performance parts needing marginal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Firmness, and Wear Resistance
Silicon carbide porcelains exhibit Vickers firmness worths of 25– 30 Grade point average, 2nd only to diamond and cubic boron nitride among engineering materials.
Their flexural toughness generally ranges from 300 to 600 MPa, with fracture durability (K_IC) of 3– 5 MPa · m ONE/ TWO– modest for porcelains but enhanced through microstructural engineering such as hair or fiber support.
The mix of high hardness and elastic modulus (~ 410 GPa) makes SiC extremely resistant to abrasive and abrasive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden environments.

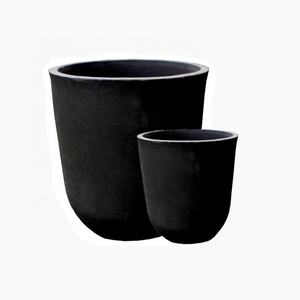

( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives numerous times longer than traditional options.
Its reduced thickness (~ 3.1 g/cm FIVE) additional contributes to wear resistance by lowering inertial forces in high-speed revolving parts.
2.2 Thermal Conductivity and Security
One of SiC’s most distinct attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline types, and approximately 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels other than copper and light weight aluminum.
This building allows reliable heat dissipation in high-power digital substrates, brake discs, and warm exchanger components.
Combined with low thermal expansion, SiC displays exceptional thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths suggest resilience to fast temperature changes.
For example, SiC crucibles can be heated from area temperature to 1400 ° C in minutes without cracking, an accomplishment unattainable for alumina or zirconia in similar problems.
Moreover, SiC preserves strength approximately 1400 ° C in inert environments, making it perfect for heater fixtures, kiln furniture, and aerospace elements subjected to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Minimizing Environments
At temperature levels listed below 800 ° C, SiC is highly steady in both oxidizing and lowering atmospheres.
Above 800 ° C in air, a safety silica (SiO ₂) layer forms on the surface area via oxidation (SiC + 3/2 O ₂ → SiO TWO + CARBON MONOXIDE), which passivates the product and reduces further degradation.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, leading to sped up economic downturn– an important consideration in generator and combustion applications.
In lowering ambiences or inert gases, SiC continues to be steady as much as its disintegration temperature (~ 2700 ° C), without any phase changes or toughness loss.
This stability makes it appropriate for molten metal handling, such as aluminum or zinc crucibles, where it withstands moistening and chemical attack much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid mixtures (e.g., HF– HNO FOUR).
It shows exceptional resistance to alkalis as much as 800 ° C, though long term direct exposure to thaw NaOH or KOH can cause surface etching through formation of soluble silicates.
In molten salt settings– such as those in focused solar power (CSP) or atomic power plants– SiC demonstrates remarkable rust resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical process tools, consisting of shutoffs, linings, and heat exchanger tubes handling aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Uses in Power, Protection, and Production
Silicon carbide porcelains are important to numerous high-value commercial systems.
In the energy market, they function as wear-resistant liners in coal gasifiers, components in nuclear fuel cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide gas cells (SOFCs).
Protection applications consist of ballistic armor plates, where SiC’s high hardness-to-density ratio offers premium defense against high-velocity projectiles compared to alumina or boron carbide at reduced price.
In production, SiC is used for accuracy bearings, semiconductor wafer managing components, and unpleasant blowing up nozzles because of its dimensional stability and purity.
Its usage in electrical vehicle (EV) inverters as a semiconductor substrate is swiftly growing, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Continuous research study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which exhibit pseudo-ductile behavior, enhanced durability, and maintained strength over 1200 ° C– perfect for jet engines and hypersonic automobile leading sides.
Additive production of SiC via binder jetting or stereolithography is progressing, making it possible for intricate geometries formerly unattainable through typical forming approaches.
From a sustainability perspective, SiC’s long life reduces replacement regularity and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created via thermal and chemical recuperation procedures to recover high-purity SiC powder.
As industries push towards greater efficiency, electrification, and extreme-environment procedure, silicon carbide-based porcelains will certainly stay at the leading edge of innovative materials engineering, linking the void between structural resilience and useful convenience.
