1. Product Principles and Structural Residence
1.1 Crystal Chemistry and Polymorphism

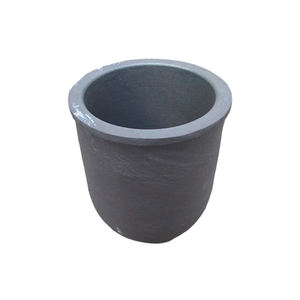

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms prepared in a tetrahedral latticework, developing one of the most thermally and chemically durable products understood.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond power exceeding 300 kJ/mol, give exceptional solidity, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is favored due to its ability to keep structural honesty under extreme thermal slopes and harsh liquified atmospheres.
Unlike oxide porcelains, SiC does not go through turbulent phase changes as much as its sublimation factor (~ 2700 ° C), making it suitable for continual operation above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying characteristic of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes consistent warmth circulation and minimizes thermal stress and anxiety during rapid home heating or cooling.
This building contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to breaking under thermal shock.
SiC also shows outstanding mechanical stamina at elevated temperature levels, preserving over 80% of its room-temperature flexural stamina (up to 400 MPa) also at 1400 ° C.
Its low coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, a crucial factor in duplicated cycling between ambient and functional temperature levels.
In addition, SiC demonstrates exceptional wear and abrasion resistance, making certain long life span in settings entailing mechanical handling or rough thaw circulation.
2. Production Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Techniques
Business SiC crucibles are largely fabricated through pressureless sintering, response bonding, or warm pushing, each offering distinctive benefits in price, purity, and efficiency.
Pressureless sintering includes condensing great SiC powder with sintering aids such as boron and carbon, adhered to by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical density.
This technique returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with liquified silicon, which reacts to develop β-SiC in situ, causing a composite of SiC and residual silicon.
While a little reduced in thermal conductivity because of metallic silicon incorporations, RBSC provides superb dimensional stability and reduced production cost, making it prominent for large commercial usage.
Hot-pressed SiC, though more costly, gives the greatest thickness and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface High Quality and Geometric Accuracy
Post-sintering machining, including grinding and splashing, ensures accurate dimensional resistances and smooth interior surfaces that reduce nucleation sites and reduce contamination threat.
Surface roughness is carefully managed to avoid thaw bond and facilitate easy launch of strengthened products.
Crucible geometry– such as wall thickness, taper angle, and lower curvature– is optimized to balance thermal mass, architectural stamina, and compatibility with furnace heating elements.
Custom-made styles accommodate certain melt volumes, heating profiles, and material reactivity, making certain optimal efficiency across varied commercial processes.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, verifies microstructural homogeneity and lack of issues like pores or splits.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Environments
SiC crucibles show phenomenal resistance to chemical attack by molten steels, slags, and non-oxidizing salts, exceeding traditional graphite and oxide ceramics.
They are steady touching liquified light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of reduced interfacial power and formation of safety surface area oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that might degrade digital buildings.
Nevertheless, under very oxidizing problems or in the visibility of alkaline fluxes, SiC can oxidize to create silica (SiO TWO), which may react better to develop low-melting-point silicates.
Therefore, SiC is finest matched for neutral or decreasing environments, where its security is maximized.
3.2 Limitations and Compatibility Considerations
Regardless of its robustness, SiC is not universally inert; it responds with particular molten products, especially iron-group metals (Fe, Ni, Co) at heats through carburization and dissolution processes.
In molten steel processing, SiC crucibles break down swiftly and are therefore avoided.
Likewise, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and developing silicides, limiting their use in battery material synthesis or responsive metal casting.
For liquified glass and ceramics, SiC is normally compatible yet might introduce trace silicon into highly delicate optical or digital glasses.
Recognizing these material-specific communications is necessary for selecting the ideal crucible type and making certain process pureness and crucible long life.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are essential in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they endure long term direct exposure to molten silicon at ~ 1420 ° C.
Their thermal stability makes sure consistent formation and decreases misplacement density, directly influencing photovoltaic effectiveness.
In factories, SiC crucibles are used for melting non-ferrous metals such as light weight aluminum and brass, supplying longer life span and minimized dross development compared to clay-graphite choices.
They are also utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic compounds.
4.2 Future Fads and Advanced Product Integration
Arising applications include the use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O THREE) are being put on SiC surface areas to additionally enhance chemical inertness and avoid silicon diffusion in ultra-high-purity processes.
Additive production of SiC elements using binder jetting or stereolithography is under advancement, encouraging complicated geometries and quick prototyping for specialized crucible designs.
As need expands for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will continue to be a keystone modern technology in advanced products manufacturing.
Finally, silicon carbide crucibles stand for an important allowing element in high-temperature commercial and scientific procedures.
Their unparalleled combination of thermal stability, mechanical stamina, and chemical resistance makes them the product of option for applications where performance and integrity are critical.
