1. Product Features and Structural Style
1.1 Make-up and Crystalline Phases of Alumina

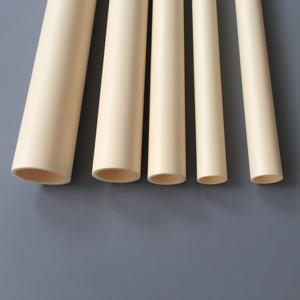

( Alumina Ceramic Tubes)
Alumina (Al ā O SIX) ceramic tubes are mostly made from high-purity light weight aluminum oxide, with pureness degrees generally varying from 90% to 99.8%, depending on the desired application.
The dominant crystalline phase in totally thick, high-temperature sintered tubes is Ī±-alumina (diamond), which displays a trigonal crystal framework and remarkable thermodynamic stability.
This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to Ī±-alumina happens above 1100 Ā° C and causes a thick, interlocking microstructure that gives impressive mechanical toughness and chemical resistance.
Higher pureness qualities (ā„ 99.5%) maximize hardness, use resistance, and dielectric efficiency, while lower-purity formulations might incorporate secondary phases like mullite or lustrous grain boundary phases to reduce cost or tailor thermal expansion.
The ability to regulate grain size, porosity, and stage make-up during processing enables engineers to tweak alumina tubes for certain functional requirements throughout varied industrial domains.
1.2 Mechanical, Thermal, and Electric Residence
Alumina ceramic tubes show a distinct mix of physical homes that make them essential popular design settings.
With a Vickers hardness exceeding 1500 HV, they are extremely immune to abrasion and erosion, outmatching most steels and polymers in wear-prone systems.
Their compressive stamina can reach 2000 MPa, enabling structural use under high mechanical tons, while flexural strength generally varies from 300 to 500 MPa, depending on density and surface area coating.
Thermally, alumina preserves stability up to 1700 Ā° C in oxidizing environments, with a reduced coefficient of thermal development (~ 8 ppm/K), contributing to outstanding thermal shock resistance when appropriately designed.
Although its thermal conductivity (~ 30 W/(m Ā· K)) is modest compared to metals or light weight aluminum nitride, it is sufficient for numerous high-temperature applications where electrical insulation and structural integrity are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 Ā¹ā“ Ī© Ā· cm and high dielectric stamina (> 15 kV/mm), making it perfect for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

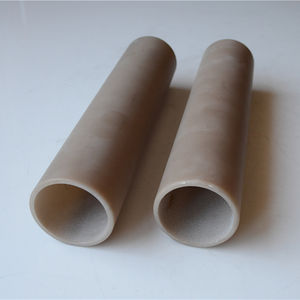

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Forming Techniques
The production of alumina ceramic tubes includes sophisticated creating methods tailored to attain precise measurements, wall thickness harmony, and surface area quality.
Common methods include extrusion, isostatic pushing, and slide casting, each suited to different size ranges and performance demands.
Extrusion is widely used for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is compelled with a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, chilly isostatic pressing (CIP) uses uniform stress from all instructions to portable environment-friendly bodies, reducing distortion and improving density homogeneity.
Slide casting, involving the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is ideal for complicated or large-diameter geometries with variable wall surface density.
After developing, tubes undertake cautious drying out to prevent fracturing, followed by binder burnout and high-temperature sintering (1500– 1650 Ā° C )to achieve full densification and dimensional stability.
2.2 Ending Up and Quality Assurance
Post-sintering procedures such as centerless grinding, washing, and brightening are employed to achieve tight resistances, smooth surface coatings, and specific internal and outer sizes.
Tolerances as tight as Ā± 0.01 mm are attainable for critical applications in semiconductor processing or analytical instrumentation.
Surface area roughness can be reduced to Ra < 0.1 Āµm, reducing fragment trapping and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive testing techniques– including ultrasonic examination, X-ray radiography, and color penetrant screening– make certain structural integrity and absence of splits or gaps.
Dimensional width using coordinate measuring makers (CMM) or laser scanning confirms conformity with layout requirements, especially for custom or high-volume manufacturing runs.
3. Functional Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of one of the most engaging benefits of alumina ceramic tubes is their capacity to stand up to severe thermal and chemical problems where steels and polymers fall short.
They remain dimensionally stable and mechanically robust in continuous service at temperatures over 1500 Ā° C, making them ideal for furnace linings, thermocouple protection sheaths, and radiant heating unit tubes.
Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and several acids (except hydrofluoric and warm phosphoric acid) enables usage in metallurgical and chemical handling equipment.
In oxidizing and minimizing ambiences, alumina does not break down or catalyze unwanted reactions, preserving process purity in semiconductor and glass production.
This chemical inertness additionally avoids contamination in high-purity liquid handling systems, consisting of those made use of in pharmaceutical and food processing industries.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma environments, alumina tubes function as insulating barriers that preserve circuit honesty under high voltage and raised temperature.
They are used in high-intensity discharge (HID) lights, where they have ionized gases at temperatures surpassing 1000 Ā° C while enduring electric possibilities of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes act as dielectric home windows or gas circulation elements, resisting ion barrage and thermal biking without cracking or outgassing.
Their low dielectric loss and high arc resistance avoid electrical monitoring and breakdown, making sure lengthy service life in switchgear and power transmission parts.
These properties are important in keeping procedure security and equipment dependability in innovative production and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Handling Equipments
Alumina ceramic tubes are essential to a wide variety of industrial processes that require longevity under extreme problems.
In thermal handling, they act as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warm therapy devices, securing delicate parts from destructive atmospheres and mechanical wear.
In fluid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables rapid home heating and cooling down cycles without failure, a vital advantage in cyclic industrial procedures.
In glass manufacturing, alumina tubes guide liquified glass circulations and support developing devices, withstanding disintegration from thick, high-temperature thaws.
4.2 Advanced Technologies and Future Integration
Past traditional industrial usages, alumina tubes are locating new functions in innovative modern technologies.
In semiconductor construction, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where bit generation and metal contamination have to be lessened.
In clinical gadgets, biocompatible alumina tubes act as shielding components in medical tools, dental implants, and diagnostic sensors.
Research study is exploring functionalized alumina tubes with embedded sensing units or conductive traces for smart structural monitoring in aerospace and energy systems.
Additive production (3D printing) of alumina is emerging as a technique to produce intricate tube geometries with interior networks or rated make-ups, allowing next-generation heat exchangers and microreactors.
As industries press towards higher effectiveness, cleaner procedures, and higher reliability, alumina ceramic tubes remain to progress as allowing parts in the facilities of modern technology.
In summary, alumina ceramic tubes stand for a mature yet dynamically progressing course of engineered products, combining exceptional thermal, mechanical, and electric efficiency in a single inorganic channel.
Their convenience throughout extreme environments guarantees their continued relevance in both established commercial systems and arising high-tech applications.
